Checkerboard model

This example shows how to define a simple two-dimensional checkerboard tight-binding model with first neighbor hopping only.

from pythtb import TBModel, Lattice
import matplotlib.pyplot as plt

Setting up the Lattice

We start by defining the lattice vectors and the coordinates of the orbitals in fractional units. These are passed to the Lattice class to create a lattice object, along with a list of periodic directions which will be treated with periodic boundary conditions.

Note

We specify that all the lattice directions are periodic by passing periodic_dirs=.... This is a convenient shorthand for specifying all directions as periodic. Alternatively, we could have passed periodic_dirs='all', or explicitly listed periodic_dirs=[0, 1].

# define lattice vectors
lat_vecs = [[1, 0], [0, 1]]
# define coordinates of orbitals
orb_vecs = [[0, 0], [1 / 2, 1 / 2]]

lat = Lattice(lat_vecs, orb_vecs, periodic_dirs=...)

Building the TBModel

The tight-binding model is created by passing the lattice object to the TBModel constructor. Next, the on-site energies and hopping parameters are then set using the set_onsite and set_hop methods.

my_model = TBModel(lat)

# set model parameters
delta = 1.1
t = 0.6

# set on-site energies
my_model.set_onsite([-delta, delta])
# set hoppings (one for each connected pair of orbitals)
# (amplitude, i, j, [lattice vector to cell containing j])
my_model.set_hop(t, 1, 0, [0, 0])
my_model.set_hop(t, 1, 0, [1, 0])
my_model.set_hop(t, 1, 0, [0, 1])
my_model.set_hop(t, 1, 0, [1, 1])

print(my_model)

Show code cell output

Hide code cell output

----------------------------------------
       Tight-binding model report
----------------------------------------
r-space dimension           = 2
k-space dimension           = 2
periodic directions         = [0, 1]
spinful                     = False
number of spin components   = 1
number of electronic states = 2
number of orbitals          = 2

Lattice vectors (Cartesian):
  # 0 ===> [ 1.000,  0.000]
  # 1 ===> [ 0.000,  1.000]
Volume of unit cell (Cartesian) = 1.000 [A^d]

Reciprocal lattice vectors (Cartesian):
  # 0 ===> [ 6.283,  0.000]
  # 1 ===> [ 0.000,  6.283]
Volume of reciprocal unit cell = 39.478 [A^-d]

Orbital vectors (Cartesian):
  # 0 ===> [ 0.000,  0.000]
  # 1 ===> [ 0.500,  0.500]

Orbital vectors (fractional):
  # 0 ===> [ 0.000,  0.000]
  # 1 ===> [ 0.500,  0.500]
----------------------------------------
Site energies:
  < 0 | H | 0 > = -1.100
  < 1 | H | 1 > =  1.100
Hoppings:
  < 1 | H | 0  + [ 0.0 ,  0.0 ] > = 0.6000+0.0000j
  < 1 | H | 0  + [ 1.0 ,  0.0 ] > = 0.6000+0.0000j
  < 1 | H | 0  + [ 0.0 ,  1.0 ] > = 0.6000+0.0000j
  < 1 | H | 0  + [ 1.0 ,  1.0 ] > = 0.6000+0.0000j
Hopping distances:
  | pos( 1 ) - pos( 0 ) + [ 0.0 ,  0.0 ] | =   0.707
  | pos( 1 ) - pos( 0 ) + [ 1.0 ,  0.0 ] | =   0.707
  | pos( 1 ) - pos( 0 ) + [ 0.0 ,  1.0 ] | =   0.707
  | pos( 1 ) - pos( 0 ) + [ 1.0 ,  1.0 ] | =   0.707

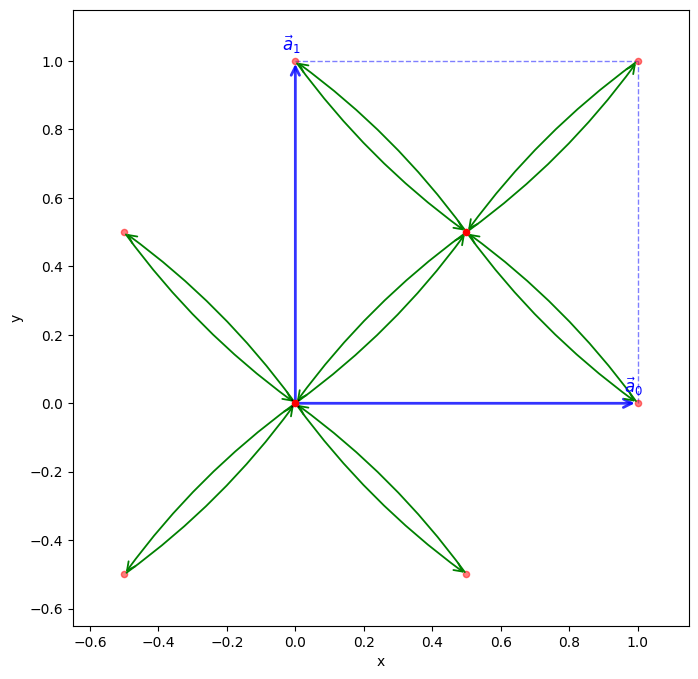

my_model.visualize()

(<Figure size 800x800 with 1 Axes>, <Axes: xlabel='x', ylabel='y'>)

Band structure calculation

We will now calculate the band structure of the checkerboard model by diagonalizing the tight-binding Hamiltonian on a path of k-points through the Brillouin zone. To do this, we first define the path in k-space as a list of high-symmetry points, and then use the k_path method of the TBModel class to generate the k-points along this path. Finally, we compute the band energies at each k-point using the solve_ham method and plot the resulting band structure.

path = [[0.0, 0.0], [0.0, 0.5], [0.5, 0.5], [0.0, 0.0]]
label = (r"$\Gamma $", r"$X$", r"$M$", r"$\Gamma $")
(k_vec, k_dist, k_node) = my_model.k_path(path, 301, report=True)

Show code cell output

Hide code cell output

----- k_path report -----
Real-space lattice vectors:
 [[1. 0.]
 [0. 1.]]
K-space metric tensor:
 [[39.47842  0.     ]
 [ 0.      39.47842]]
Nodes (reduced coords):
 [[0.  0. ]
 [0.  0.5]
 [0.5 0.5]
 [0.  0. ]]
Reciprocal-space vectors:
 [[1. 0.]
 [0. 1.]]
Nodes (Cartesian coords):
 [[0.  0. ]
 [0.  0.5]
 [0.5 0.5]
 [0.  0. ]]
Segments:
  Node 0 [0. 0.] to Node 1 [0.  0.5]: distance = 3.14159
  Node 1 [0.  0.5] to Node 2 [0.5 0.5]: distance = 3.14159
  Node 2 [0.5 0.5] to Node 3 [0. 0.]: distance = 4.44288
Node distances (cumulative): [ 0.       3.14159  6.28319 10.72607]
Node indices in path: [  0  88 176 300]
-------------------------

Now solve for eigenenergies of the Hamiltonian on the set of k-points from above. We use the k_vec array returned by k_path for this purpose. The other two arrays, k_dist and k_node, are used for plotting the band structure later on.

evals = my_model.solve_ham(k_vec)

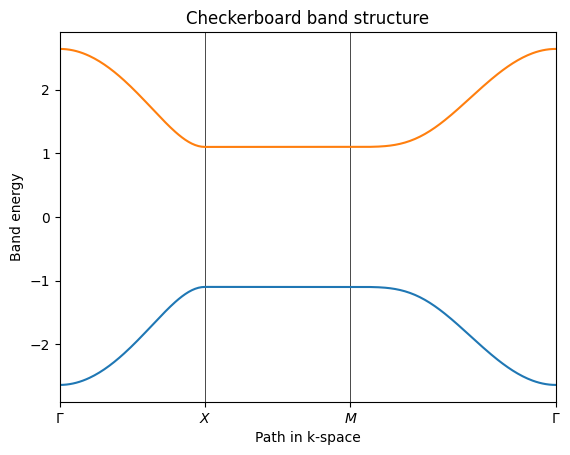

Lastly, we plot the band structure using matplotlib.

Tip

You can use the TBModel.plot_bands method to visualize the band structure to avoid re-implementing the matplotlib code. This method takes the high-symmetry k-points defined in path as an argument and produces a plot of the energy bands.

fig, ax = plt.subplots()

ax.set_xlim(k_node[0], k_node[-1])
ax.set_xticks(k_node)
ax.set_xticklabels(label)
for n in range(len(k_node)):
    ax.axvline(x=k_node[n], linewidth=0.5, color="k")

ax.plot(k_dist, evals)

ax.set_title("Checkerboard band structure")
ax.set_xlabel("Path in k-space")
ax.set_ylabel("Band energy")
plt.show()
