Berry phase and curvature in the Haldane model#
In this example, we will compute the Berry phase and Berry curvature for the Haldane model on a honeycomb lattice using the pythtb package. The Haldane model is a paradigmatic example of a topological insulator in two dimensions, featuring complex next-nearest-neighbor hopping that breaks time-reversal symmetry. As such, it exhibits non-trivial topological properties characterized by a non-zero Chern number and associated Berry curvature in momentum space.
from pythtb import TBModel, Lattice, WFArray, Mesh
import numpy as np
import matplotlib.pyplot as plt
# define lattice vectors
lat_vecs = [[1, 0], [1 / 2, np.sqrt(3) / 2]]
# define coordinates of orbitals
orb_vecs = [[1 / 3, 1 / 3], [2 / 3, 2 / 3]]
lat = Lattice(lat_vecs, orb_vecs, periodic_dirs=...)
# make two dimensional tight-binding Haldane model
my_model = TBModel(lat)
# set model parameters
delta = 0
t = -1
t2 = 0.15 * np.exp(1j * np.pi / 2)
t2c = t2.conjugate()
# set on-site energies
my_model.set_onsite([-delta, delta])
# set hoppings (one for each connected pair of orbitals)
# (amplitude, i, j, [lattice vector to cell containing j])
my_model.set_hop(t, 0, 1, [0, 0])
my_model.set_hop(t, 1, 0, [1, 0])
my_model.set_hop(t, 1, 0, [0, 1])
# add second neighbour complex hoppings
my_model.set_hop(t2, 0, 0, [1, 0])
my_model.set_hop(t2, 1, 1, [1, -1])
my_model.set_hop(t2, 1, 1, [0, 1])
my_model.set_hop(t2c, 1, 1, [1, 0])
my_model.set_hop(t2c, 0, 0, [1, -1])
my_model.set_hop(t2c, 0, 0, [0, 1])
print(my_model)

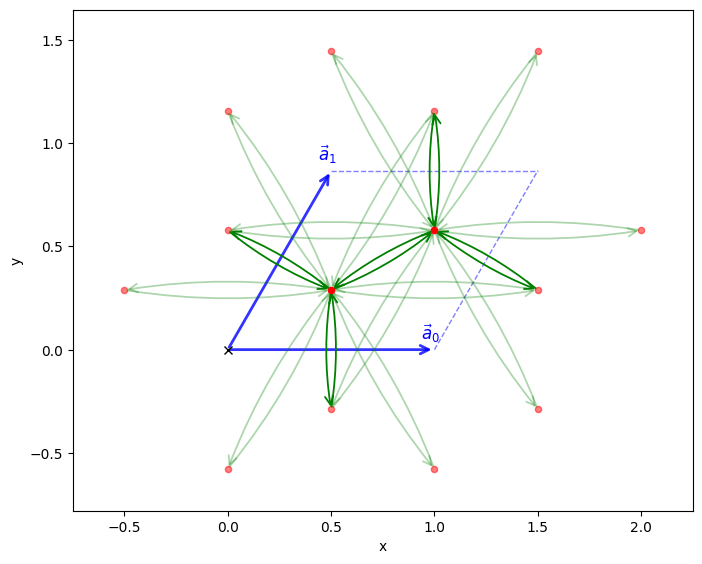

my_model.visualize()
----------------------------------------
Tight-binding model report
----------------------------------------
r-space dimension = 2
k-space dimension = 2
periodic directions = [0, 1]
spinful = False
number of spin components = 1
number of electronic states = 2
number of orbitals = 2
Lattice vectors (Cartesian):
# 0 ===> [ 1.000, 0.000]
# 1 ===> [ 0.500, 0.866]
Volume of unit cell (Cartesian) = 0.866 [A^d]
Reciprocal lattice vectors (Cartesian):
# 0 ===> [ 6.283, -3.628]
# 1 ===> [ 0.000, 7.255]
Volume of reciprocal unit cell = 45.586 [A^-d]
Orbital vectors (Cartesian):
# 0 ===> [ 0.500, 0.289]
# 1 ===> [ 1.000, 0.577]
Orbital vectors (fractional):
# 0 ===> [ 0.333, 0.333]
# 1 ===> [ 0.667, 0.667]
----------------------------------------
Site energies:
< 0 | H | 0 > = 0.000
< 1 | H | 1 > = 0.000
Hoppings:
< 0 | H | 1 + [ 0.0 , 0.0 ] > = -1.0000+0.0000j
< 1 | H | 0 + [ 1.0 , 0.0 ] > = -1.0000+0.0000j
< 1 | H | 0 + [ 0.0 , 1.0 ] > = -1.0000+0.0000j
< 0 | H | 0 + [ 1.0 , 0.0 ] > = 0.0000+0.1500j
< 1 | H | 1 + [ 1.0 , -1.0 ] > = 0.0000+0.1500j
< 1 | H | 1 + [ 0.0 , 1.0 ] > = 0.0000+0.1500j
< 1 | H | 1 + [ 1.0 , 0.0 ] > = 0.0000-0.1500j
< 0 | H | 0 + [ 1.0 , -1.0 ] > = 0.0000-0.1500j
< 0 | H | 0 + [ 0.0 , 1.0 ] > = 0.0000-0.1500j
Hopping distances:
| pos( 0 ) - pos( 1 ) + [ 0.0 , 0.0 ] | = 0.577
| pos( 1 ) - pos( 0 ) + [ 1.0 , 0.0 ] | = 0.577
| pos( 1 ) - pos( 0 ) + [ 0.0 , 1.0 ] | = 0.577
| pos( 0 ) - pos( 0 ) + [ 1.0 , 0.0 ] | = 1.000
| pos( 1 ) - pos( 1 ) + [ 1.0 , -1.0 ] | = 1.000
| pos( 1 ) - pos( 1 ) + [ 0.0 , 1.0 ] | = 1.000
| pos( 1 ) - pos( 1 ) + [ 1.0 , 0.0 ] | = 1.000
| pos( 0 ) - pos( 0 ) + [ 1.0 , -1.0 ] | = 1.000
| pos( 0 ) - pos( 0 ) + [ 0.0 , 1.0 ] | = 1.000
(<Figure size 800x800 with 1 Axes>, <Axes: xlabel='x', ylabel='y'>)
Inspect the band structure#

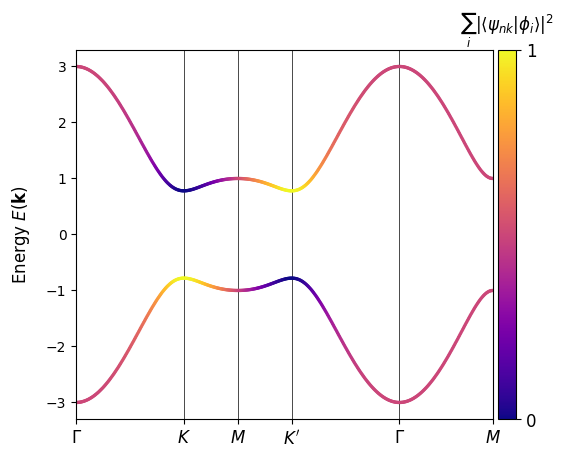

A high-symmetry path through the hexagonal Brillouin zone highlights the gap opened by the complex second-neighbour hopping. We colour the bands by projection onto one sublattice to highlight the fact that a band-inversion occured at the \(K^\prime\) point upon the gap closing and re-opening.
k_nodes = [[0, 0], [2 / 3, 1 / 3], [0.5, 0.5], [1 / 3, 2 / 3], [0, 0], [0.5, 0.5]]
k_labels = (r"$\Gamma $", r"$K$", r"$M$", r"$K^\prime$", r"$\Gamma $", r"$M$")
my_model.plot_bands(
k_nodes,
k_node_labels=k_labels,
nk=501,
scat_size=2,
proj_orb_idx=[1],
cmap="plasma",
)
(<Figure size 640x480 with 2 Axes>, <Axes: ylabel='Energy $E(\\mathbf{{k}})$'>)
Brillouin-zone mesh#
To compute curvature we sample the full two-dimensional Brillouin zone. Mesh(['k','k']).build_grid() builds a two-dimensional Monkhorst–Pack grid with uniform sampling.
Note
The first argument to Mesh is a list of axis types. Here we have two ‘k’ axes, indicating a 2D k-space mesh. The build_grid method then constructs the grid with the specified shape and centering. Here we specify gamma_centered=True to center the grid around the \(\Gamma\) point, meaning the k-points will range from \(-\frac{1}{2}\) to \(\frac{1}{2}\) in both directions. By default the endpoints are not included in the grid, but this can be changed with the k_endpoints argument.
mesh = Mesh(["k", "k"])
mesh.build_grid(shape=(31, 31), gamma_centered=True)
print(mesh)
Mesh Summary
========================================
Type: grid
Dimensionality: 2 k-dim(s) + 0 λ-dim(s)
Number of mesh points: 961
Full shape: (31, 31, 2)
k-axes: [Axis(type=k, name=k_0, size=31), Axis(type=k, name=k_1, size=31)]
λ-axes: []
Is a torus in k-space (all k-axes wind BZ): yes
Loops: (axis 0, comp 0, winds_bz=yes, closed=no), (axis 1, comp 1, winds_bz=yes, closed=no)
Using WFArray#
Generate object of type WFArray that will be used for Berry phase and curvature calculations
wfa = WFArray(my_model.lattice, mesh)
wfa.solve_model(my_model)
Calculate Berry phases around the BZ in the \(k_x\) direction (which can be interpreted as the 1D hybrid Wannier center in the \(x\) direction) and plot results as a function of \(k_y\).
# Berry phases along k_x for lower band
phi_0 = wfa.berry_phase(axis_idx=0, state_idx=[0], contin=True)
# Berry phases along k_x for upper band
phi_1 = wfa.berry_phase(axis_idx=0, state_idx=[1], contin=True)
# Berry phases along k_x for both bands
phi_both = wfa.berry_phase(axis_idx=0, state_idx=[0, 1], contin=True)
These results indicate that the two bands have equal and opposite Chern numbers.

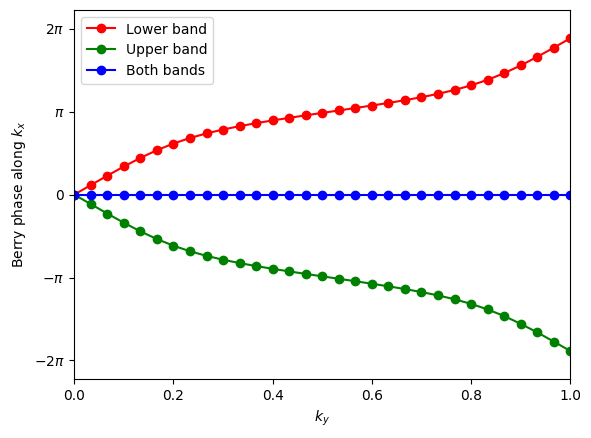

# plot Berry phases
fig, ax = plt.subplots()
ky = np.linspace(0, 1, len(phi_1))
ax.plot(ky, phi_0, "ro-", label="Lower band")
ax.plot(ky, phi_1, "go-", label="Upper band")
ax.plot(ky, phi_both, "bo-", label="Both bands")
ax.legend()
ax.set_xlabel(r"$k_y$")
ax.set_ylabel(r"Berry phase along $k_x$")
ax.set_xlim(0.0, 1.0)
ax.set_ylim(-7.0, 7.0)
ax.yaxis.set_ticks([-2 * np.pi, -np.pi, 0, np.pi, 2 * np.pi])
ax.set_yticklabels((r"$-2\pi$", r"$-\pi$", r"$0$", r"$\pi$", r"$2\pi$"))
[Text(0, -6.283185307179586, '$-2\\pi$'),
Text(0, -3.141592653589793, '$-\\pi$'),
Text(0, 0.0, '$0$'),
Text(0, 3.141592653589793, '$\\pi$'),
Text(0, 6.283185307179586, '$2\\pi$')]
Verify with calculation of Chern numbers
chern0 = wfa.chern_number(state_idx=[0], plane=(0, 1))
chern1 = wfa.chern_number(state_idx=[1], plane=(0, 1))
print("Chern number for lower band = ", chern0)
print("Chern number for upper band = ", chern1)
Chern number for lower band = -1.0000000000000002
Chern number for upper band = 1.0
Berry flux tiles#
WFArray.berry_flux(state_idx=[0], plane=(0, 1)) returns the discretized Berry flux through each plaquette for the chosen band (here the lowest). This is the gauge-invariant ingredient that sums to the band Chern number.
bflux = wfa.berry_flux(state_idx=[0], plane=(0, 1))
Visualize the curvature#

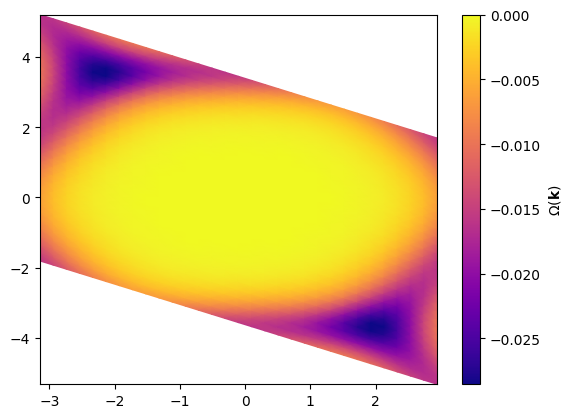

We map the mesh points into Cartesian momentum coordinates using the reciprocal lattice vectors, then plot the Berry flux density with pcolormesh. The peak at the \(K^\prime\) point signals the topological character of the band.
mesh_cart = mesh.points @ my_model.recip_lat_vecs
KX, KY = mesh_cart[..., 0], mesh_cart[..., 1]
im = plt.pcolormesh(KX, KY, bflux, cmap="plasma", shading="gouraud")
plt.colorbar(label=r"$\Omega(\mathbf{k})$")
<matplotlib.colorbar.Colorbar at 0x74836479bb00>
